High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna

44x10mm 3G 4G LTE Antenna Flex PCB Antenna GSM 4G Antenna Flexible Circuit Boards Indoor Antenna - C&T RF Antennas Inc

Antenna Flex PCB Antenna Manufacturer

C&T RF Antennas Inc is a High-performance 3G 4G Antenna Flex PCB Antenna Manufacturer in China, we provide Antennas with many antenna types and radio frequency bands.

Contact the C&T RF team for more High-performance 4G LTE antenna flex antenna details such as 4G LTE antenna flex antenna datasheet, 4G LTE antenna flex antenna price, and 4G LTE antenna flex antenna inventory.

Description

What is a high-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna?

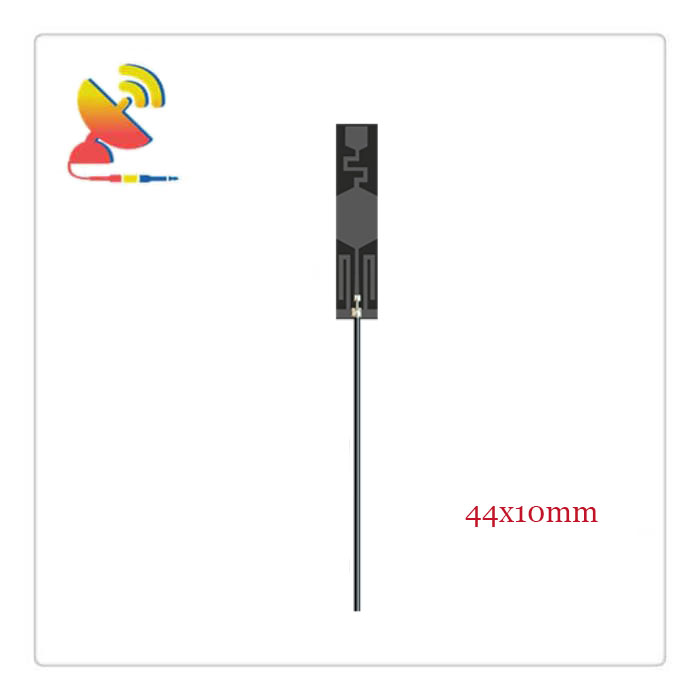

The High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna CTRF-ANTENNA-FPC-7027-4410-IPEX With Factory Price Flexible FPC 4G LTE FPCB Antenna With IPEX/UFL Connector 0.81 Cable 100mm manufactured by C&T RF Antennas Inc for embedded applications.

High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna product: 1, 3DBI Gain;  2, FPC Materials;  3, IPEX/UFL Connector; 4, 44x10mm FPC size; 5, RG 1.13 cable.

China PCB 4G Internal Antenna, Flexible PCB Antenna 4G Antenna, Find details about China 4G Antenna, Flexible PCB 4G Internal Antenna from C&T RF Antennas Inc.

C&T RF Antennas Inc provides internal & external antennas with antenna radio frequencies such as NFC169MHz230MHz315MHz433MHz868MHz915MHzVHF&UHFLoraNB-IoTADS-BGSMGNSS, GPRS, 1.2 GHz, 1.4 GHz, 1.8 GHz, Wi-Fi 2.4 GHz, 5.8 GHz, Cellular 2G, 3G, 3.5 GHz, 4G LTEGPS5G NR, 6G, etc.

C&T RF Antennas Inc. provides RF antennae with Omni & Directional antenna types such as Dipole AntennasWhip AntennasMarine AntennasRouter AntennasMIMO AntennasCombo AntennasPCB AntennasFPC AntennasSpring AntennasMagnetic AntennasSector AntennasYagi Antennas, and Accessories, etc, for IoT & M2M industries.

High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Are Available At C&T RF Antennas Inc.

Contact Us For High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Inventory, High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Pricing, and internal 3G 4G LTE Antenna Flex PCB Embedded Antenna Datasheets.

High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Specifications:

High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Electrical Specifications

RF Antenna Type Embedded FPC Antenna
Model CTRF-ANTENNA-FPC-7027-4410-IPEX
Frequency 700-960MHz, 1710-2700MHz
Gain 2dBi/4dBi
VSWR ≤2.0
Impedance 50 Ω
Polarization Vertical/Linear
Cable Type RG1.13
Connector U.FL/IPEX
Cable Length 100mm
Lightning Protection DC-Ground

High-performance 3G 4G LTE Antenna Flex PCB Embedded Antenna Mechanical Specifications

FPC Board Dimension 44x10mm
Weight Approx. 5g
Material FPCB + RG Cable + U.FL connector
Operation Temperature -40˚C~+65˚C
Storage Temperature -40˚C~+70˚C
Color Black
Antenna Design Dipole Array
Mounting Connector/Peel-and-Stick
Safety Emission and other RoHS Compliant
Applications ISM/SCADA/Utilities, IoT/M2M/NB-IoT/LoRa, 2G 3G 4G LTE/LTE-IoT, GSM GPRS UMTS, etc.

High-performance Flexible PCB Antenna Features

Flexible PCB Antenna Features - C&T RF Antennas Inc Antenna Supplier
Flexible PCB Antenna Features – C&T RF Antennas Inc Antenna Supplier





Flexible PCB Antenna FPC Antenna Features - C&T RF Antennas Inc Antenna Company
Flexible PCB Antenna FPC Antenna Features – C&T RF Antennas Inc Antenna Company





Flexible PCB Antenna FPC Antenna Features - C&T RF Antennas Inc Antenna Manufacturer
Flexible PCB Antenna FPC Antenna Features – C&T RF Antennas Inc Antenna Manufacturer





RG low loss cable antenna extension antenna extender - C&T RF Antennas Inc
RG low-loss cable antenna extension antenna extender – C&T RF Antennas Inc





Flexible PCB Antenna IPex Connector PCB U.FL Connector antennas - C&T RF Antennas Inc
Flexible PCB Antenna IPex Connector PCB U.FL Connector antennas – C&T RF Antennas Inc





High-performance Flexible PCB Antenna Applications

Wireless antenna RF Antenna Applications-CT-RF-Antennas-Inc
Wireless antenna RF Antenna Applications-CT-RF-Antennas-Inc

LTE, Long Term Evolution Technology

LTE is a follow-up development plan of UMTS technology in the field of wireless access formulated by 3GPP to meet the challenges of competing technologies such as WiMAX and future-oriented 4G technologies.

In 2004, 3GPP launched a long-term research plan including LTE to maintain the technological leadership of the UMTS technology system in the next 10 years.

The most notable feature of LTE is the use of OFDM (Orthogonal Frequency Division Multiplexing) technology and the use of 20MHz bandwidth. At the same time, it cooperates with the MIMO, high-order modulation, and enhanced RAKE reception and interference cancellation technology that has been used in HSPA+. , In order to reach the goal of 100Mbps down and 50Mbps up.

LTE is divided into two duplex modes, TDD and FDD.

In addition, from the perspective of network structure, the LTE wireless network will cancel the RNC node, each base station will be directly connected to the core network, and the network structure will be flat.

Therefore, although LTE is still claimed to be an evolution from the name, it is actually a subversion of WCDMA technology from a technical perspective.

At present, the standardization process of LTE is in progress. 3GPP has already included relevant LTE specifications since UMTS R8 (that is, in 2008).

In recent years, as major operators have become increasingly clear on the choice of post-3G communication technology, other technologies may stop developing or move closer to LTE technology.

The technology represented by LTE has gradually achieved the mainstream status of post-3G technology, which is very likely. Become the leader of 4G technology.

For example, the CDMA2000 1x technology system was originally planned to develop from 1x EV-DO to UMB (Ultra Mobile Broadband), but the plan has been abandoned and LTE has been adopted as the follow-up technology.
