Description
What is a Passive Internal GPS Antenna IPEX?

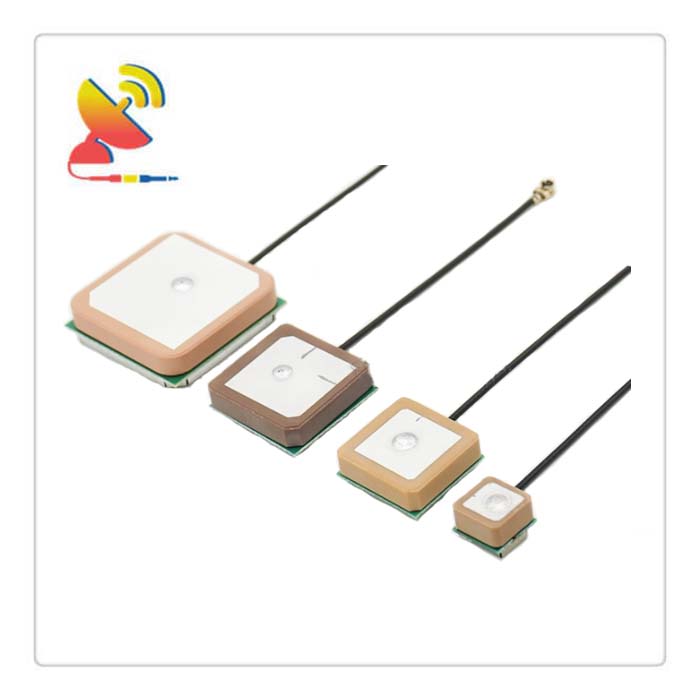

The high-precision passive internal GPS antenna IPEX model CTRF-ANTENNA-GPS-1575-151504-IPEX is a small size 15x15mm square ceramic patch antenna 1575.42 MHz/1561 MHz antenna manufactured by C&T RF Antennas Inc. for GPS/Beidou navigation.
The high-precision passive internal GPS antenna IPEX comes with a 15*15mm size, 4mm thickness, IPEX connector, RG 1.13 cable extension, and adhesive backing for easy mounting. It also has a 2mm thickness thinner version for your choice.
The high-precision passive internal GPS antenna IPEX is available at C&T RF Antennas Inc, we provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, UWB, etc.
C&T RF Antennas Inc provides the wireless antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
To contact us for more details on the high-precision passive internal GPS antenna IPEX, such as the ceramic GPS antenna datasheet, the IPEX GPS Antenna pricing, and the passive GPS antenna inventory.
Or the other active-passive GPS antenna styles.
High-Precision Passive Internal GPS Antenna IPEX Specifications:
High-Precision Passive Internal GPS Antenna IPEX Electrical Specifications |
|
| RF Antenna Type | Ceramic Patch Antenna |
| Model | CTRF-ANTENNA-GPS-1575-151504-IPEX |
| Frequency | 1561MHz; 1575.42MHz |
| Gain | 2dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Right-Hand Circular Polarization |
| Cable | RG1.13 130mm |
| Connector | U.FL/IPEX |
| DC voltage | 3-5V |
| DC | 5-10mA |
| Humidity | 25°C to 95% |
High-Precision Passive Internal GPS Antenna IPEX Mechanical Specifications |
|
| Dimension | 15x15x4mm |
| Weight | Approx. 10g |
| Material | Ceramic |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +90˚C |
| Color | White |
| Antenna Form | Passive |
| Mounting | Ipex/Screw |
| Safety, Emission, and other | RoHS Compliant |
| Applications | GPS/GNSS/Beidou |

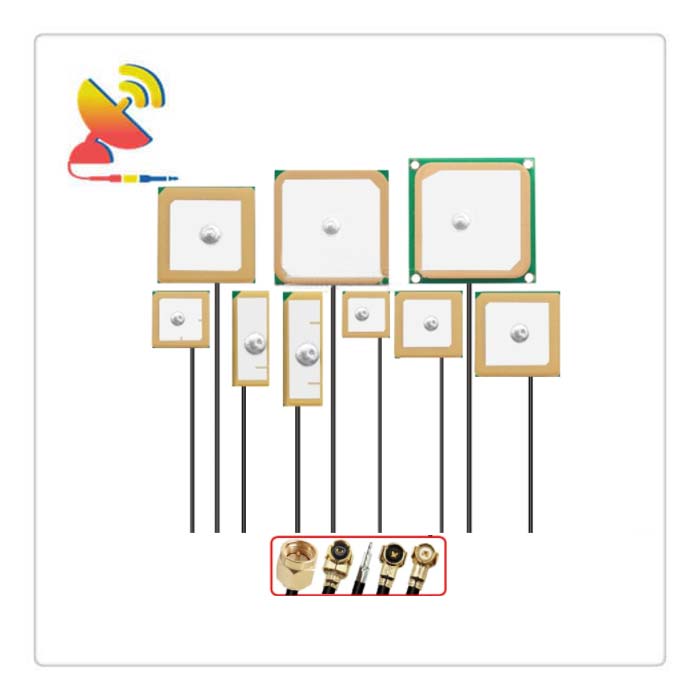

We have below passive ceramic GPS antenna sizes for your best choice.
16*6*2mm passive GPS ceramic antenna
16*6*4mm passive GPS ceramic antenna
20*6*2mm passive GPS ceramic antenna
20*6*4mm passive GPS ceramic antenna
15*15*2mm passive GPS ceramic antenna
15*15*4mm passive GPS ceramic antenna
18*18*2mm passive GPS ceramic antenna
18*18*4mm passive GPS ceramic antenna
25*25*2mm passive GPS ceramic antenna
25*25*4mm passive GPS ceramic antenna
etc.
