Description
What is a 4G 5G LTE GSM Cellular PCB Antenna?

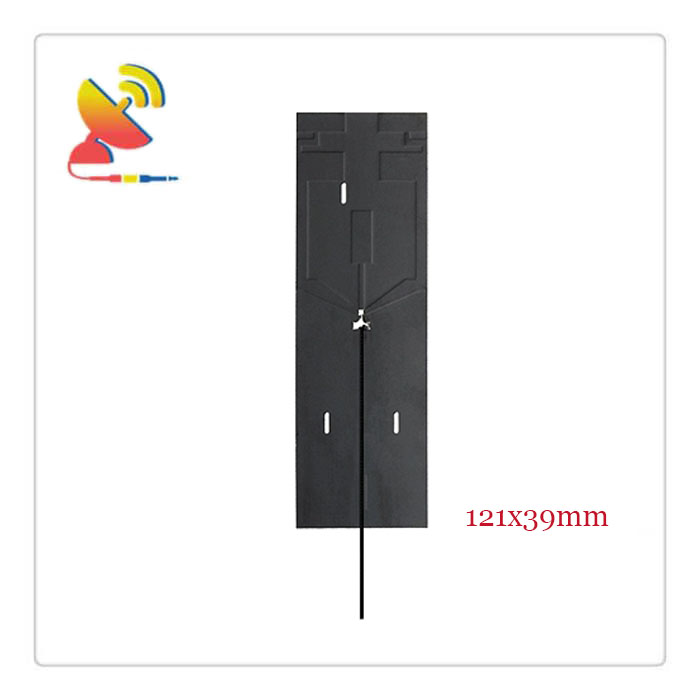

The high-gain 5G/4G wideband PCB antenna item CTRF-ANTENNA-PCB-60600-12139-IPEX is a 12/15dBi high-gain 5G/4G/3G/2G cellular bands internal PCB antenna provided by C&T RF Antennas Inc., an indoor-outdoor cellular 4G LTE 5G NR antenna, ultra-wideband antenna manufacturer in China.
The high-gain 5G/4G wideband PCB antennas are cellular antennas that cover GSM, LTE, 2G/3G/4G/5G wideband antennas. They have a 121x39mm PCB-based size, a 12/15dBi high-gain, IPEX/u.FL connectors, with self-adhesive backing for easy mounting.
Features of High-Gain 5G/4G Wideband PCB Antenna
High-performance
High-gain
Strong signal transmission and reception
Wideband
Rigid PCB style
Adhesive backing
etc.
The high-gain 4G 5G LTE GSM Cellular PCB antenna is supplied by C&T RF Antennas Inc., the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, Cellular 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, NFC, ADS-B, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc. for IoT & M2M industries.
The high-gain 5G/4G wideband PCB antenna is available at C&T RF Antennas Inc. Contact us for the 4G 5G PCB antenna datasheet, 4G 5G wideband antenna pricing, and inventory on the 4G LTE 5G NR PCB Antenna.
Or other indoor-outdoor 5G NR antenna styles.
High-Gain 5G/4G Wideband PCB Antenna Specifications
High-Gain 5G/4G Wideband PCB Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-12139-IPEX |
| Frequency | 600-6000MHz |
| Gain | 12/15dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-Gain 5G/4G Wideband PCB Antenna Mechanical Specifications |
|
| Dimension | 121x39mm |
| Weight | Approx. 15g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc. |
Built-in PCB Antenna Features
