Description
What is a GSM 3G 4G Antenna Flexible PCB Antenna?
The Small-sized Cellular 4G LTE Flexible Antenna CTRF-ANTENNA-FPC-7027-3209-IPEX is an embedded flexible PCB small antenna manufactured by C&T RF Antennas Inc. for the cellular 4G LTE wireless network applications.
The small-sized cellular 4G LTE flexible antenna is specifically designed for cellular IoT and M2M applications. It is made of a durable, flexible polymer, internal antenna with a 3M type sticker, a low-loss cable extension, IPEX connector that easily connects to the IoT devices.
The small-sized cellular 4G LTE flexible antenna is supplied by C&T RF Antennas Inc., the leading indoor-outdoor antenna manufacturer in China.
We provide the IoT antenna M2M antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, LoRa, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc provides the 4G LTE antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc, for IoT & M2M industries.
The small-sized cellular 4G LTE flexible antenna is available at C&T RF Antennas Inc. Contact us for the small-sized cellular 4G LTE flexible antenna datasheet, 4G LTE flexible antenna pricing, and antenna inventory, or other GSM 3G 4G antenna types.
Small-sized Cellular 4G LTE Flexible Antenna Specifications
Small-sized Cellular 4G LTE Flexible Antenna Electronic Specifications |
|
| RF Antenna Type | Flexible PCB/FPC Antenna |
| Model | CTRF-ANTENNA-FPC-7027-3209-IPEX |
| Frequency | 698-960MHz, 1710-2700MHz |
| Gain | 3dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 130mm |
| Connector | U.FL/IPEX/MHF1 |
| Lightning Protection | DC Ground |
Small-sized Cellular 4G LTE Flexible Antenna Mechanical Specifications |
|
| Dimension | 32x9mm |
| Weight | Approx. 3g |
| Material | Flexible PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/PCS, etc. |

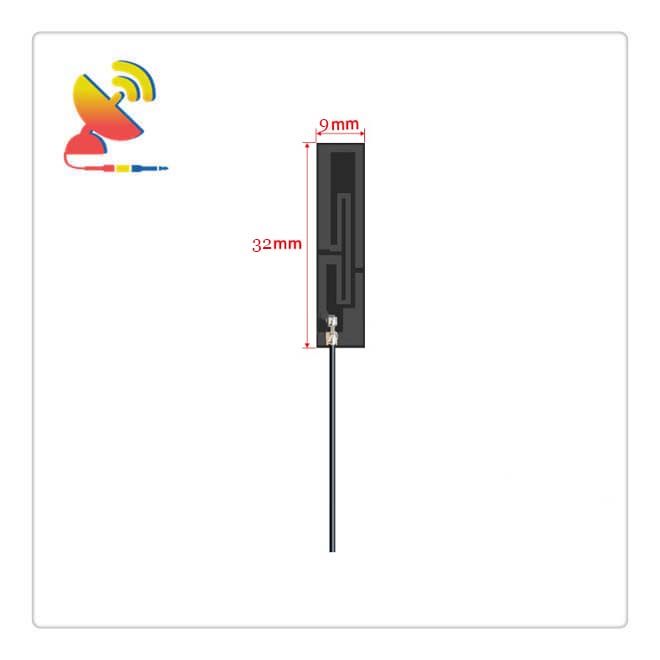

Size of Small-sized Cellular 4G LTE Flexible Antenna
Internal Flexible PCB Antenna Features
Cellular 4G LTE Antenna Applications
