What is an Indoor LTE Omnidirectional Antenna 4G PCB Antenna?
The Indoor LTE Omnidirectional Antenna 4G PCB Antenna CTRF-ANTENNA-PCB-7027-3409-IPEX is an internal LTE antenna 4G full-band 698-960 MHz, 1710-2700 MHz LTE cellular NB-IoT GSM antenna manufactured by C&T RF Antennas Inc.
The CTRF-ANTENNA-PCB-7027-3409-IPEX Indoor LTE Omnidirectional Antenna 4G PCB Antenna Covers Lora, NB-IoT, 2G, 3G, GPRS, PCS, GSM, 4G, LTE Cellular Networks.

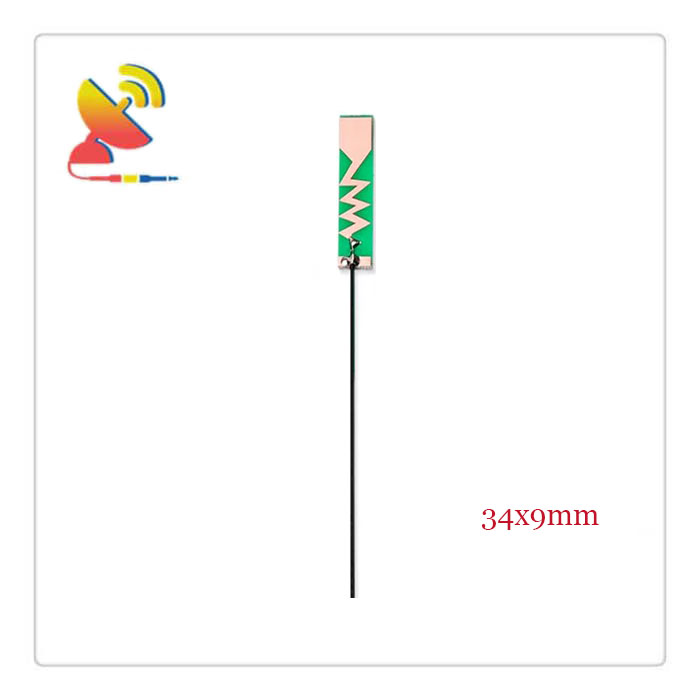

The Indoor LTE Omnidirectional Antenna 4G PCB Antenna has a small size of 34x9mm, compatible, low-profile, high-performance, 3dBi peak gain, Ipex connector, 100mm coaxial cable antenna extension, and double side self-adhesive sticker for the easy mount to the 4G terminals.
C&T RF Antennas Inc provides internal & external antennas with antenna radio frequencies such as NFC, 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, VHF&UHF, Lora, NB-IoT, ADS-B, GSM, GNSS, GPRS, 1.2 GHz, 1.4 GHz, 1.8 GHz, Wi-Fi 2.4 GHz, 5.8 GHz, Cellular 2G, 3G, 3.5 GHz, 4G LTE, GPS, 5G NR, 6G, etc.
C&T RF Antennas Inc. provides RF antennae with Omni & Directional antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Magnetic Antennas, Sector Antennas, Yagi Antennas, and Accessories, etc, for IoT & M2M industries.
Contact the C&T RF sales team for the Indoor LTE Omnidirectional Antenna 4G PCB Antenna datasheet, antenna pricing, antenna inventory, or the other 4G PCB antenna types.
Indoor LTE Omnidirectional Antenna 4G PCB Antenna Specifications:
Indoor LTE Omnidirectional Antenna 4G PCB Antenna Electrical Specifications |
|
| RF Antenna Type | Built-in PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-3409-IPEX |
| Frequency | 698-960MHz, 1710-2700MHz |
| Gain | 1dBi/3dBi |
| VSWR | ≤2.5 |
| Impedance | 50 Ω |
| Polarization | Vertical/Linear |
| Cable Type | RG1.13 |
| Connector | U.FL/IPEX |
| Cable Length | 100mm |
| Lightning Protection | DC-Ground |
Indoor LTE Omnidirectional Antenna 4G PCB Antenna Mechanical Specifications |
|
| PCB Board Dimension | 34*9mm |
| Weight | Approx. 2g |
| Material | PCB + RG Cable + U.FL connector |
| Operation Temperature | -40˚C ~ +65˚C |
| Storage Temperature | -40˚C ~ +70˚C |
| Color | Green |
| Antenna Design | Dipole Antenna |
| Mounting | Connector/Sticker |
| Safety Emission and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/M2M/NB-IoT/LoRa, 2G 3G 4G LTE/LTE-IoT, GSM GPRS UMTS, etc. |
Indoor LTE Omnidirectional Antenna 4G PCB Antenna Features
RG low-loss cable antenna extension antenna extender – C&T RF Antennas Inc
4G PCB Antenna Applications
What is the PCB printed-circuit-board antenna band range?
Antennas are critical components for many wireless systems, with printed-circuit-board (PCB) antennas leading the pack due to their small size and ease of integration with other high-frequency circuits.
The performance and consistency of a PCB antenna depend heavily on the quality of its foundation circuit laminate, with size very much a function of the target frequency and wavelength of the antenna.
There’s no doubt a voracious appetite for wireless applications—from personal communications systems (PCS) to Internet of Things (IoT) apps, to automotive electronic control and safety systems.
As operating frequencies creep higher, from the 2.4-GHz band of PCS applications to the millimeter-wave (mm-wave) frequencies of automotive advanced driver-assistance systems (ADAS), the need for antennas accompanies them.
That’s where PCB antennas step in—designers often turn to them as practical solutions to handle the ever-growing array of wireless applications.
What is 4G?
4G (fourth-generation mobile communication technology standard), is an extension of 3G.
According to the definition of the International Telecommunication Union, the static transmission rate reaches 1Gbps, and the user can reach 100Mbps in the high-speed mobile state, which can be used as 4G technology LTE Advanced (Long Term Evolution Technology Upgrade): peak rate: 1Gbps downstream, 500Mbps upstream.
The first 4G standard to be recognized by the International Telecommunication Union and the only de facto mainstream 4G standard.
WiMAX-Advanced (globally interoperable microwave access upgrade): led by the WiMAX Forum, receiving downlink and uplink at a maximum rate of 300Mbps, and up to 1Gbps at stationary fixed point reception.
TD-LTE-Advanced: China’s new generation of mobile telecommunications technology with independent intellectual property rights, with peak rates exceeding 1Gbps.
