Description
What is a High-performance NB-IoT 4G LTE Full-Band PCB Antenna?
The high-performance NB-IoT 4G LTE full-band PCB antenna CTRF-ANTENNA-PCB-7027-6708-IPEX antenna is an internal type rigid PCB antenna with 700- 2700MHz full bands antenna manufactured by C&T RF Antennas Inc. for 4G LTE Cat-M/NB-IoT cellular applications.
Features of The High-performance NB-IoT 4G LTE Full-Band PCB Antenna
4G LTE Cat-M/NB-IoT cellular applications
Internal antenna type
IPex interface antenna
Rigid PCB Board material
RG 1.13 low-loss antenna cable extension
700- 2700MHz full bands
etc.
The high-performance NB-IoT 4G LTE full-band PCB antenna is manufactured by C&T RF Antennas Inc., the leading Cellular IoT internal antenna & external antenna manufacturer in China.
A range of Cellular IoT NB-IoT 4G 3G LTE antennas, including Flexible, SMA, whip, helical, stubby, and fiberglass antennas from C&T RF Antennas Inc.
C&T RF Antennas Inc. also provides 4G Antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc.
C&T RF Antennas Inc provides RF wireless antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NFC, VHF&UHF, NB-IoT, ADS-B, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, etc.
High-performance NB-IoT 4G LTE full-band PCB antenna is available at C&T RF Antennas Inc. Contact us for the 4G narrowband PCB antenna datasheet, LTE narrowband PCB antenna pricing, and inventory on the NB-IoT 4G LTE PCB antenna.
Or other 4G LTE Antenna styles.
High-performance NB-IoT 4G LTE Full-Band PCB Antenna Specifications
High-performance NB-IoT 4G LTE Full-Band PCB Antenna Electrical Specifications |
|
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-6708-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 4/6dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 120mm |
| Lightning Protection | DC-Ground |
High-performance NB-IoT 4G LTE Full-Band PCB Antenna Mechanical Specifications |
|

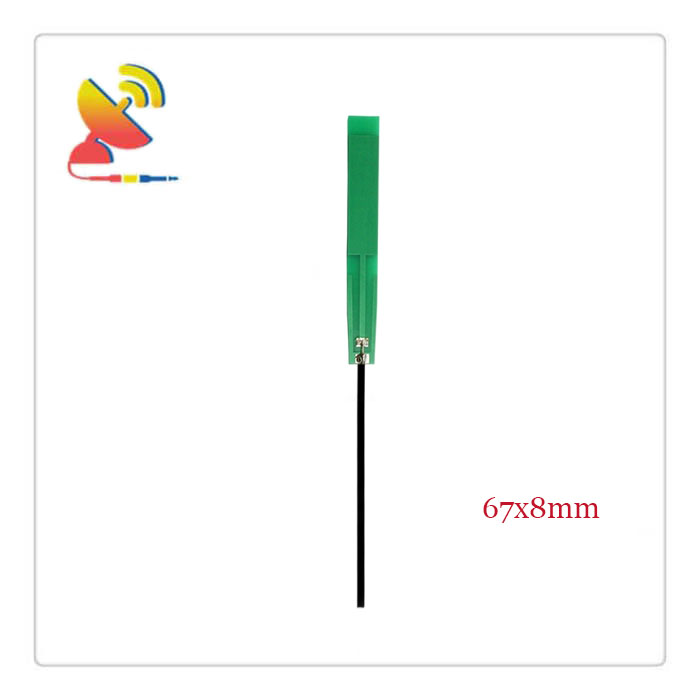

| PCB Board Dimension | 67*8mm |
| Weight | Approx. 5g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM, 3G/UMTS/PCS, 4G/LTE, LTE-M/LTE-NB, etc. |
High-performance NB-IoT 4G LTE Full-Band PCB Antenna Features
