Description
What is an LTE NB-IoT Antenna Flexible PCB Antenna?

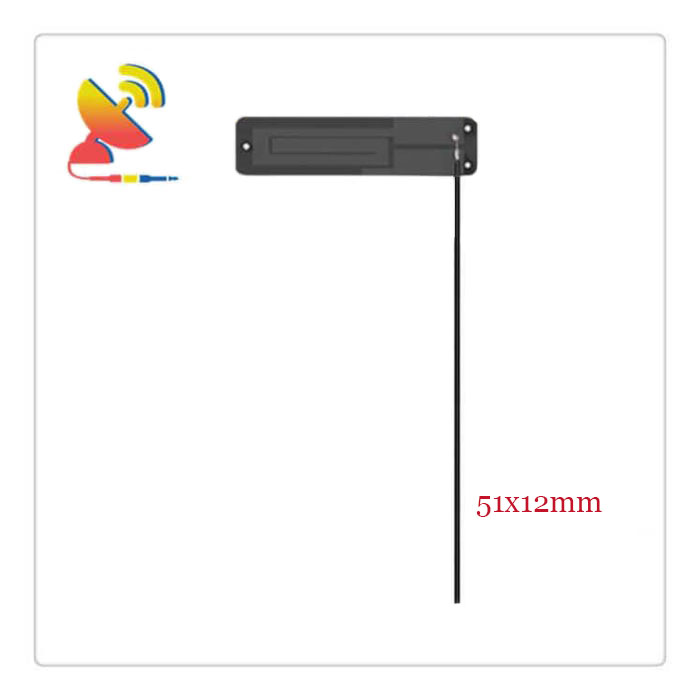

The LTE NB-IoT Antenna Flexible PCB Antenna CTRF-ANTENNA-FPC-7027-5112-IPEX is an internal FPC antenna with a 4dBi gain 4G LTE-NB antenna manufactured by C&T RF Antennas Inc for LTE and NB-IoT applications.
It has an IPex connector, 120mm cable antenna extender, 51x12mm size, 4dBi antenna, and an IPex antenna for easy mounting to the device.
LTE and NB-IoT
Improved indoor coverage, support for a massive number of low-throughput devices, low delay sensitivity, ultra-low device cost, and low device power consumption.
NB-IoT should support 3 different modes of operation :
Stand-alone operation, utilizing, for example, the spectrum currently being used by GERAN systems as a replacement for one or more GSM carriers, as well as scattered spectrum for potential IoT deployment.
Guard band operation, utilizing the unused resource blocks within an LTE carrier’s guard band
In-band operation, utilizing resource blocks within a normal LTE carrier
180 kHz UE RF bandwidth for both downlink and uplink
180 kHz UE RF bandwidth for both downlink and uplink
. Uplink supports 15kHz and 3.75kHz subcarrier spacing; downlink supports 15kHz sub-carrier spacing
3.75 kHz supports single-tone only; provides greater coverage, longer CP, and relaxed timing requirements;
Smaller power consumption
Only support type-B half-duplex FDD operation (type-B definition refers to 3GPP 36.211 R13 chapter)
The 4G LTE NB-IoT Antenna Flexible PCB Antenna is produced by C&T RF Antennas Inc, the internal & external antenna supplier in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc. provides the LoRa antenna with many antenna types, such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
Contact us for the 4G LTE NB-IoT Antenna Flexible PCB Antenna datasheet, LTE NB-IoT Antenna Flexible Antenna pricing, LTE NB-IoT Antenna Flex PCB Antenna inventory, or the other LTE NB-IoT Antenna styles.
4G LTE NB-IoT Antenna Flexible PCB Antenna Specifications
LTE NB-IoT Antenna Flexible PCB Antenna Electrical Specifications |
|
| RF Antenna Type | Flex PCB Antenna |
| Model | CTRF-ANTENNA-FPC-7027-5112-IPEX |
| Frequency | 700-2700MHz |
| Gain | 4dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Connector | UFL/Ipex/Opening |
| Lightning Protection | DC-Ground |
4G LTE NB-IoT Antenna, Flexible PCB Antenna, Mechanical Specifications |
|
| Flexible PCB Board Dimension | 51x12mm |
| Weight | Approx. 5g |
| Material | Flexible PCB Board |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Antenna |
| Mounting | Screw |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM/3G/4G/LTE-M/LTE-NB/PCS/UMTS, etc. |
LTE NB IoT Flexible PCB Antenna Features
Flexible PCB Antenna RF Antenna Applications
