What is an Internal PCB Antenna 3G 4G LTE Antenna?
The Internal PCB Antenna 3G 4G LTE Antenna CTRF-ANTENNA-PCB-7027-4410-UFL120 is an embedded antenna with a 698-960MHz,1710-2700Mhz 4G LTE antenna manufactured by C&T RF Antennas Inc for cellular network applications.

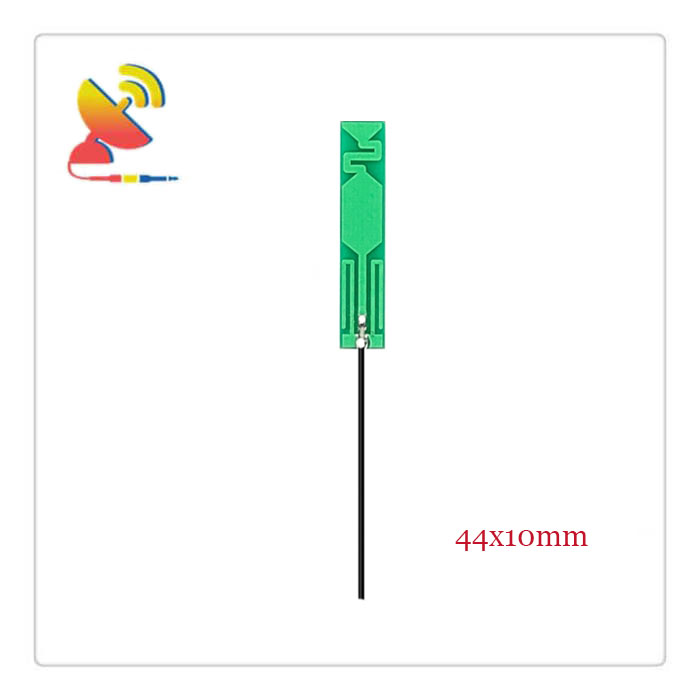

The Internal PCB Antenna 3G 4G LTE Antenna comes with a 44x10mm size PCB board, 3dBi gain, 120mm cable extender, Ipex connector, and self-adhesive sticker for the easy mount to the Lora, NB-IoT, GSM, LTE device Ipex base.
What is the LTE network architecture?
LTE Network architecture
Network architecture refers to the specific components of LTE network elements, as well as the way they are connected together, and the role played by each part respectively.
LTE Network element architecture
LTE network architecture is characterized by flat, packet domain, IP, multi-standard convergence, user plane, control plane separation, etc. The network elements of the LTE network include UE, eNodeB, and EPC.
The LTE network architecture is developed based on the reduced UTRAN network architecture, and this three-layer flat network architecture shortens the distance between user terminals and core network elements.
In addition to this, the benefits include:
A reduction in the number of nodes and a significant reduction in latency in the user plane.
Simplification of the control plane from the sleep state to the active state reduces the time for state migration.
Reduced system complexity, fewer interface types, and correspondingly less interoperability within the system.
The Internal PCB Antenna 3G 4G LTE Antenna is produced by C&T RF Antennas Inc, the internal & external GSM 3G 4G LTE antenna supplier in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc provides the IoT & M2M antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
Contact us for the Internal PCB Antenna 3G 4G LTE Antenna datasheet, Internal PCB Antenna 3G 4G LTE Antenna pricing, Internal PCB Antenna 3G 4G LTE Antenna inventory, or the other 3G 4G LTE Antenna styles.
Internal PCB Antenna 3G 4G LTE Antenna Specifications
Internal PCB Antenna 3G 4G LTE Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-4410-UFL120 |
| Frequency | 700-2700MHz |
| Gain | 3dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Connector | UFL/Ipex/Opening |
| Lightning Protection | DC-Ground |
Internal PCB Antenna 3G 4G LTE Antenna Mechanical Specifications |
|
| PCB Board Dimension | 44x10mm |
| Weight | Approx. 5g |
| Material | PCB Board |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Dipole Antenna |
| Mounting | Screw |
| Safety Emission and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa,
2G/GPRS/GSM/3G/4G/LTE-M/LTE-NB |
Internal PCB Antenna 3G 4G LTE Antenna Features
3G 4G PCB Antenna Applications
