What is an Internal Antenna LTE NR 5G Flexible PCB Antenna?

The Internal Antenna LTE NR 5G Flexible PCB Antenna CTRF-ANTENNA-FPC-60600-8237-UFL120 is a GSM, NB-IoT, 4G LTE, 5G NR, and Sub-6G antenna Ipex antenna manufactured by C&T RF Antennas Inc for the wireless IoT & M2M applications.

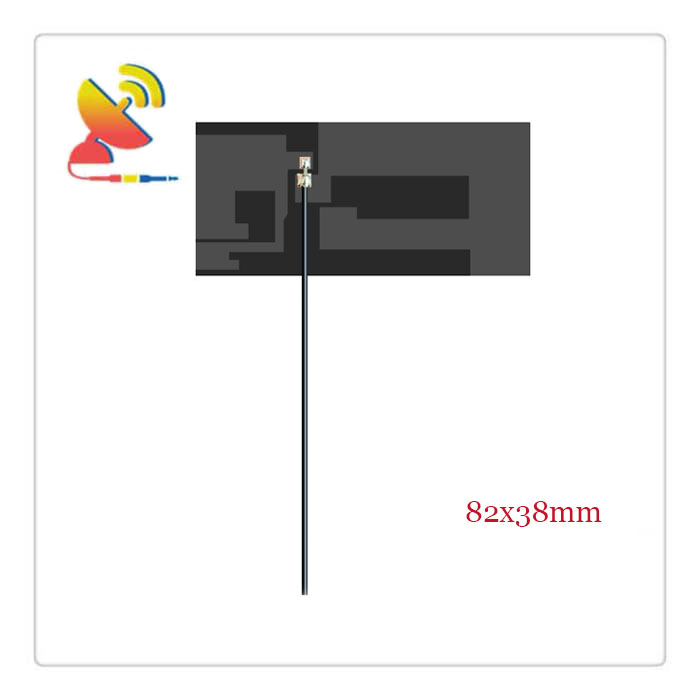

The Internal Antenna LTE NR 5G Flexible PCB Antenna comes with an 8dBi high gain antenna 82x37mm flexible antenna and 120mm RG 1.13 cable antenna extension Ipex/u.FL/MHF connector antenna for easy installation to the device/terminal.

What is the BTS functional reconfiguration for 5G NR?

The base station function of 5G is reconfigured into two functional entities, CU and DU. CU and DU functions

The cut-off between the CU and DU functions is differentiated by the real-time nature of the processed content.

CU:

CU (Centralized Unit): mainly includes non-real-time wireless high-level protocol stack functions, and also supports part of the core network function sinking and deployment of edge application services

DU:

DU(Distributed Unit);: mainly handles physical layer functions and layer 2 functions with real-time requirements. Considering the saving of transmission resources between RRU and DU, some physical layer functions can also be moved up to RRU for implementation

AAU:

The original BBU baseband function is partially moved up to reduce the transmission bandwidth between DU-RRU



5G NR Physical Signals and Antenna Ports

Antenna port of the uplink:

Antenna port 0 (starting number) is used for DM-RS of PUSCH

Antenna port 1000 (starting number) for SRS

Antenna port 2000 (start number) for DM-RS of PUCCH

Antenna port 4000 for PRACH

Antenna port of downlink:

Antenna port 1000 (start number) for DM-RS of PDSCH

Antenna port 2000 (starting number) DM-RS for PDCCH

Antenna port 3000 (start number) for CSI-RS

Antenna port 4000 (starting number) for SS/PBCH



The Internal Antenna LTE NR 5G Flexible PCB Antenna is supplied by C&T RF Antennas Inc, the leading indoor-outdoor antenna manufacturer in China.

We provide the indoor & outdoor antennas with other antenna radio frequencies such as 169MHz230MHz315MHz433MHz868MHz915MHzLoraNB-IoTGSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTEGPS5G NR, etc.

C&T RF Antennas Inc provides the 4G LTE 5G NR Sub-6G antenna with many antenna types such as Dipole AntennasWhip AntennasMarine AntennasRouter AntennasMIMO AntennasPCB AntennasFPC AntennasSpring Antennas, etc, for IoT & M2M industries.

The Internal Antenna LTE NR 5G Flexible PCB Antenna is available at C&T RF Antennas Inc, Contact us for the LTE NR 5G Flexible PCB Antenna datasheet, LTE NR 5G Flexible PCB Antenna pricing, and LTE NR 5G Flexible PCB Antenna inventory, or other 5G NR Antenna types.

Internal Antenna LTE NR 5G Flexible PCB Antenna Specifications

Internal Antenna LTE NR 5G Flexible PCB Antenna Electronical Specifications

RF Antenna Type Flexible PCB/FPC Antenna
Model CTRF-ANTENNA-FPC-60600-8237-UFL120
Frequency 600-6000MHz
Gain 8dBi
VSWR ≤3.0
Impedance 50 Ω
Polarization Omnidirectional
Cable RG1.13mm
Cable Length 120mm
Connector U.FL/IPEX/MHF
Lightning Protection DC Ground

Internal Antenna LTE NR 5G Flexible PCB Antenna Mechanical Specifications

Dimension 82x37mm
Weight Approx. 10g
Material Flexible PCB/FPC
Operation Temperature -40˚C ~ +85˚C
Storage Temperature -40˚C ~ +80˚C
Color Black
Antenna Form Omni Dipole
Mounting Sticker/Connector
Safety Emission and other RoHS Compliant
Applications Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G
