Description

What is an Indoor LTE Antenna Flexible Antenna 4G?

The Indoor LTE Antenna Flexible Antenna 4G Antenna CTRF-ANTENNA-FPC-7027-3412-UFL120 is an embedded antenna 2G 3G 4G indoor LTE antenna manufactured by C&T RF Antennas Inc for 4G LTE network applications.

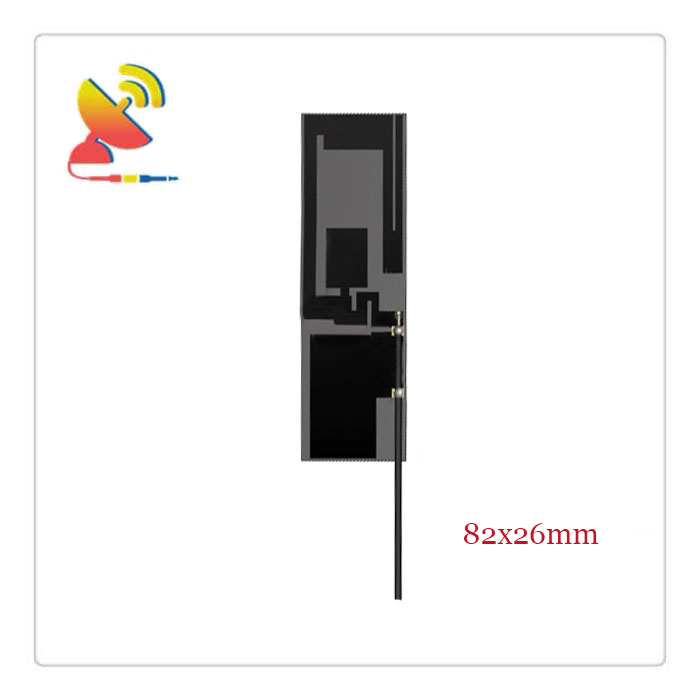

The Indoor LTE Antenna Flexible Antenna 4G Antenna is a 6/8dBi high-gain antenna with an 82x26mm flexible PCB-base antenna, 120mm length antenna cable extension, and flexible antenna Ipex connector for LoRa, GSM, NB-IoT, LTE, UMTS, 2G 3G 4G networks.

The Indoor LTE Antenna Flexible Antenna 4G Antenna is supplied by C&T RF Antennas Inc, the leading indoor-outdoor 4G LTE antenna manufacturer in China.

We provide the IoT & M2M antennas with other radio frequencies such as 169MHz230MHz315MHz433MHz868MHz915MHzLoraNB-IoTGSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTEGPS5G NR, etc.

C&T RF Antennas Inc provides the 4G LTE antenna with many antenna types such as Dipole AntennasWhip AntennasMarine AntennasRouter AntennasMIMO AntennasPCB AntennasFPC AntennasSpring Antennas, etc, for IoT & M2M industries.

The Indoor LTE Antenna Flexible Antenna 4G antenna is available at C&T RF Antennas Inc, Contact us for the Indoor LTE Antenna Flexible Antenna 4G antenna datasheet, Indoor LTE Antenna Flexible Antenna 4G antenna pricing, and Indoor LTE Antenna Flexible Antenna 4G antenna inventory, or other GSM 4G LTE Antenna types.

Indoor LTE Antenna Flexible Antenna 4G Antenna Specifications

Indoor LTE Antenna Flexible Antenna 4G Antenna Electronical Specifications

RF Antenna Type Flexible PCB/FPC Antenna
Model CTRF-ANTENNA-FPC-7027-8226-UFL120
Frequency 698-960MHz, 1710-2700MHz
Gain 6/8dBi
VSWR ≤2.0
Impedance 50 Ω
Polarization Omnidirectional
Cable RG1.13mm
Cable Length 120mm
Connector U.FL/IPEX/MHF
Lightning Protection DC Ground

Indoor LTE Antenna Flexible Antenna 4G Antenna Mechanical Specifications

Dimension 82x26mm
Weight Approx. 8g
Material Flexible PCB/FPC
Operation Temperature -40˚C ~ +85˚C
Storage Temperature -40˚C ~ +80˚C
Color Black
Antenna Form Omni Dipole
Mounting Sticker/Connector
Safety Emission and other RoHS Compliant
Applications Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE

Indoor LTE Antenna Flexible Antenna 4G Antenna Features

Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features - C&T RF Antennas Inc Antenna Company
Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features – C&T RF Antennas Inc Antenna Company



Built-in Antenna Flexible Antenna Flex PCB Antenna Features - C&T RF Antennas Inc Antenna Supplier
Built-in Antenna Flexible Antenna Flex PCB Antenna Features – C&T RF Antennas Inc Antenna Supplier



RG cable with low loss antenna extension antenna extender - C&T RF Antennas Inc Antenna Manufacturer
RG cable with low loss antenna extension antenna extender – C&T RF Antennas Inc Antenna Manufacturer



IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder - C&T RF Antennas Inc
IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder – C&T RF Antennas Inc



GSM 4G Antenna Applications

Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc
Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc



What are the characteristics of the fourth-generation mobile communication system?

The fourth-generation mobile communication system has the following features:

◆Faster transmission rate:

For high-speed mobile users (250km/h), the data rate is 2Mbps; for For medium-speed mobile users (60km/h), the data rate is 20Mbps; for low-speed mobile users (indoor or walkers), the data rate is 100Mbps;

◆Higher spectrum utilization efficiency:

4G uses and introduces many powerful breakthrough technologies in the development and development process, and the wireless spectrum is utilized much more efficiently than the second and third-generation systems, and the speed is quite fast, and the download rate can reach 5Mbps~10Mbps;

◆Wider network spectrum:

Each 4G channel will occupy 100MHz or more of bandwidth, while the bandwidth of 3G networks is between 5 and 20MHz;
More capacity:

4G will use new network technology (such as space-division multiple access technologies) to greatly increase the system capacity to meet the future demand of large information volume;

◆More flexibility:

The 4G system adopts intelligent technology to allocate resources adaptively and adopts intelligent signal processing technology to send and receive signals normally in various complex environments with different channel conditions. In addition, users will

A wide variety of devices are used to access the 4G system;

◆Enabling higher-quality multimedia communication:

4G network wireless multimedia communication services will include voice, data, video, etc., a large amount of information transmitted through the broadband channel so that users can access the system at any time, anywhere, so 4G is also real-time broadband and seamless coverage of multimedia mobile communications;
