What is a High-performance Flex PCB Antenna 4G LTE?

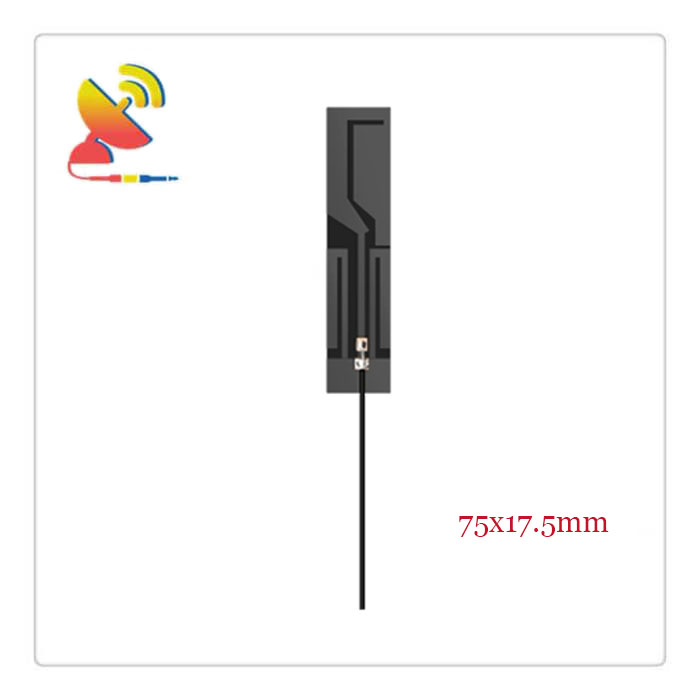

The high-performance flex PCB antenna 4G LTE CTRF-ANTENNA-FPC-7027-7517-IPEX item is an FPC material 4G LTE flexible antenna manufactured by C&T RF Antennas Inc for internal cellular wireless network 2G/3G/4G/LTE applications.
The high-performance flex PCB antenna 4G LTE is a 6±1dBi high-gain LTE antenna, with RG1.13 cable extension, and an IPex connector, with adhesive backing mounted directly onto the housing of an IoT device.
The high-performance flex PCB antenna 4G LTE antenna is manufactured by C&T RF Antennas Inc., the leading internal antenna & external antenna manufacturer in China.
A range of cellular antennas, including Flexible, SMA, whip, helical, and stubby antennas from C&T RF Antennas Inc., High-performance LTE Cat NB1 NB2 4G Patch Antenna is available at C&T RF Antennas Inc.
We provide the IoT & M2M antennas with other radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, VHF&UHF, Lora, NB-IoT, ADS-B, GSM, GNSS, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc. provides RF antennas with many antenna types, such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
Contact us for the high-performance flex PCB antenna 4G LTE antenna datasheet, 4G LTE flex antenna pricing, and inventory on the 4G LTE antenna.
Or the other 4G LTE antenna styles.
High-performance Flex PCB Antenna 4G LTE Specifications
High-performance Flex PCB Antenna 4G LTE Antenna Electrical Specifications |
|
| RF Antenna Type | Embedded Antenna |
| Model | CTRF-ANTENNA-FPC-7027-7517-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 6±1dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 100mm |
| Lightning Protection | DC-Ground |
High-performance Flex PCB Antenna 4G LTE Antenna Mechanical Specifications |
|
| Flexible PCB Board Dimension | 75*17.5mm |
| Weight | Approx. 5g |
| Material | Flexible PCB / FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Colour | Black |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM/3G/UMTS/4G/LTE-M/LTE-NB, etc. |
High-performance Flex PCB Antenna 4G LTE Antenna Features
