Description
What is a Flex Antenna 4G 5G LTE Antenna?

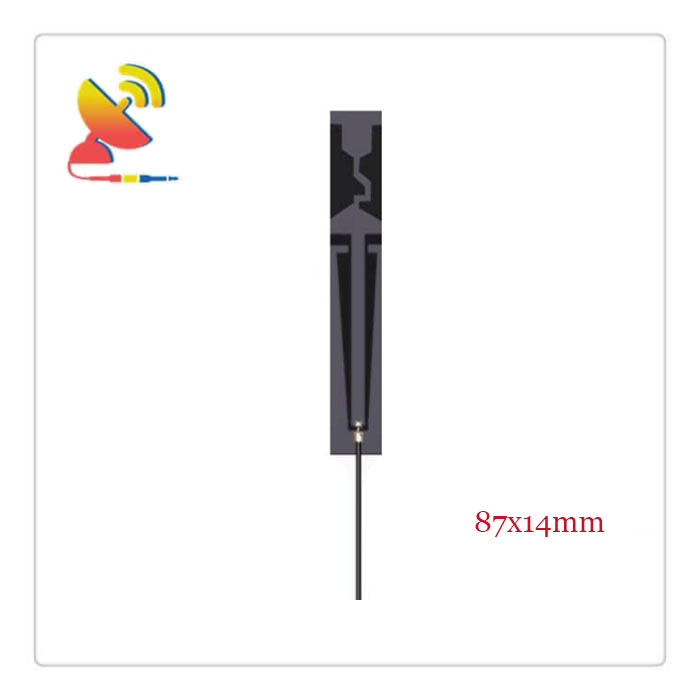

The high-performance flex antenna 4G 5G LTE antenna CTRF-ANTENNA-FPC-60600-8714-IPEX is an internal antenna made by a flexible printed circuit board, with a size of 87x14mm. 4G LTE 5G NR antenna manufactured by C&T RF Antennas Inc., the internal-external 5G NR antenna manufacturer in China.
The high-performance flex antenna 4G 5G LTE antenna has been designed to cover all working frequencies in the 600- 6000MHz spectrum, covering all Cellular, 2.4GHz Wi-Fi®, ISM, LoRa, GSM, LTE, NB-IoT, GPS/GNSS, and PCS. The antenna is delivered with a flexible body with excellent efficiencies on all bands, ground independent, with a cable and connector for easy installation.
The high-performance flex antenna 4G 5G LTE antenna is supplied by C&T RF Antennas Inc., a leading manufacturer of indoor-outdoor 5G NR antennas in China.
We provide indoor-outdoor antennas with various radio frequencies, including 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, LoRa, NB-IoT, GSM, Wi-Fi (2.4GHz, 5.8GHz), 2G, 3G, 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR Sub-6G antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc, for IoT & M2M industries.
The high-performance flex antenna 4G 5G LTE antenna is available at C&T RF Antennas Inc. Contact us for the 4G 5G LTE antenna datasheet, 5G NR LTE flex antenna pricing, and 5G NR LTE flexible antenna inventory.
Or other internal-external 5G NR antenna types.
High-performance Flex Antenna 4G 5G LTE Antenna Specifications
High-performance Flex Antenna 4G 5G LTE Antenna Electronic Specifications |
|
| RF Antenna Type | Flexible PCB/FPC Antenna |
| Model | CTRF-ANTENNA-FPC-60600-8714-IPEX |
| Frequency | 600-6000MHz |
| Gain | 6/8dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Cable | RG1.13mm |
| Cable Length | 130mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-performance Flex Antenna 4G 5G LTE Antenna Mechanical Specifications |
|
| Dimension | 87x14mm |
| Weight | Approx. 10g |
| Material | Flexible PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc |
High-performance Flex Antenna 4G 5G LTE Antenna Features
4G 5G NR Antenna Applications
