Description
What is a 5G NR 4G LTE PCB Antenna?
The high-performance 5G NR 4G LTE PCB antenna item CTRF-ANTENNA-PCB-60600-9514-IPEX is a 6/8dBi high-gain 4G 5G PCB antenna provided by C&T RF Antennas Inc., an indoor-outdoor cellular 4G LTE 5G NR antenna, ultra-wideband antenna manufacturer in China.

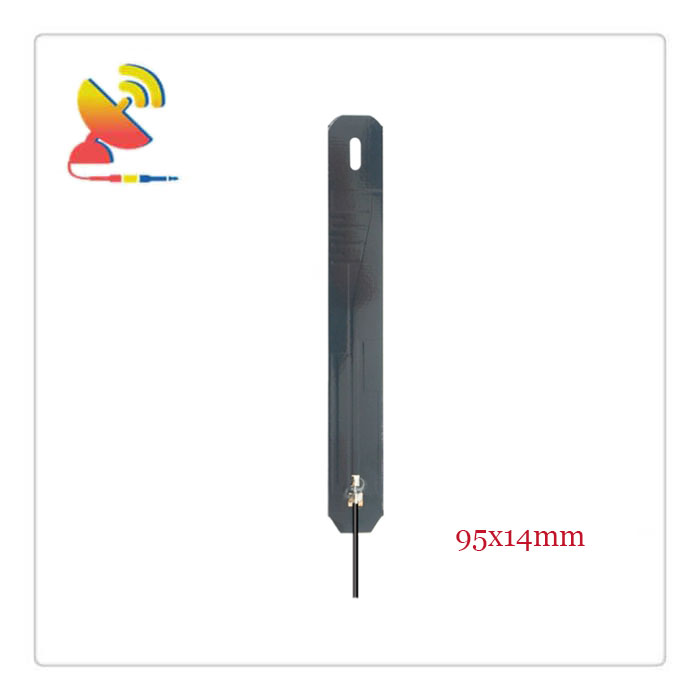

The high-performance 5G NR 4G LTE PCB antenna comes with a 6/8dBi high-gain, a 95x14mm size rigid printed circuit board material, an IPEX connector, RG 1.13 cable extension, and adhesive backing for easy mounting.
Features of High-performance 5G NR 4G LTE PCB Antenna
High-performance
Low profile
Broadband
Internal PCB style
Adhesive backing
etc.
The high-performance 5G NR 4G LTE PCB antenna is supplied by C&T RF Antennas Inc., the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, Cellular 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, NFC, ADS-B, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc. for IoT & M2M industries.
The high-performance 5G NR 4G LTE PCB antenna is available at C&T RF Antennas Inc. Contact us for the 5G NR PCB antenna datasheet, LTE 5G PCB antenna pricing, and inventory on the 4G LTE 5G NR PCB Antenna.
Or other indoor-outdoor 5G NR antenna styles.
High-performance 5G NR 4G LTE PCB Antenna Specifications
High-performance 5G NR 4G LTE PCB Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-9514-IPEX |
| Frequency | 600-6000MHz |
| Gain | 6/8dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-performance 5G NR 4G LTE PCB Antenna Mechanical Specifications |
|
| Dimension | 95x14mm |
| Weight | Approx. 12g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc. |
Built-in PCB Antenna Features
