What is a High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB?

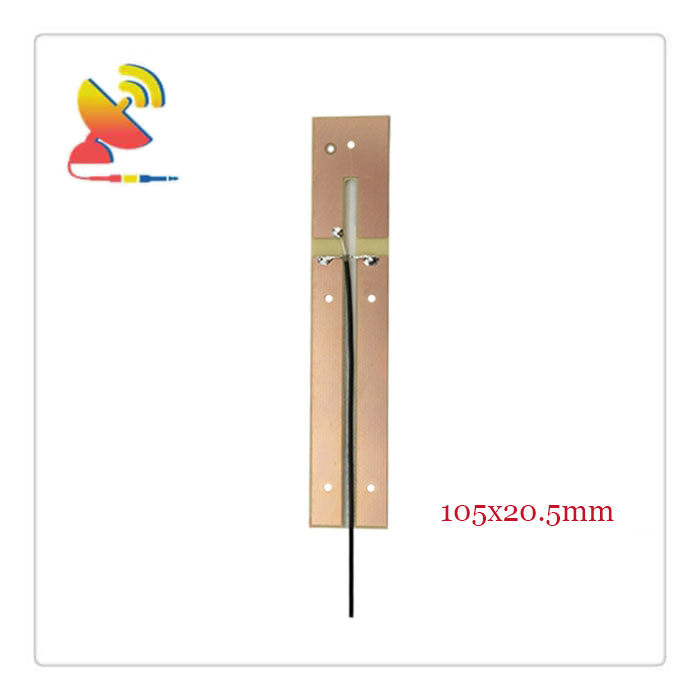

The high-gain PCB cellular antenna 4G CaT-M LTE-NB CTRF-ANTENNA-PCB-7027-10520-IPEX antenna is an 8/10dBi high-gain antenna 4G LTE full-band 700- 2700MHz internal PCB antenna manufactured by C&T RF Antennas Inc. for internal cellular IoT applications.
Features of The High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB
4G, CAT-M, LTE-NB applications
Full-band 700 – 2700MHz
8/10dBi high-gain antenna
Rigid printed circuit board material
RG 1.13 low-loss cable extension
With an adhesive sticker
etc.
The high-gain PCB cellular antenna 4G CAT-M LTE-NB antenna is manufactured by C&T RF Antennas Inc., China’s leading Cellular IoT internal antenna & external antenna manufacturer.
A range of Cellular IoT NB-IoT 4G 3G LTE antennas, including Flexible, SMA, whip, helical, stubby, and fiberglass antennas from C&T RF Antennas Inc.
C&T RF Antennas Inc. also provides 4G Antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc.
C&T RF Antennas Inc provides RF wireless antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NFC, VHF&UHF, NB-IoT, ADS-B, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, etc.
The high-gain PCB cellular antenna 4G CaT-M LTE-NB antenna is available at C&T RF Antennas Inc. Contact us for the 4G CaT-M LTE-NB PCB antenna datasheet, antenna pricing, and antenna inventory.
Or the other 4G CAT-M LTE-NB antenna styles.
High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB Specifications
High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB Electrical Specifications |
|
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-10520-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 8/10dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 120mm |
| Lightning Protection | DC-Ground |
High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB Mechanical Specifications |
|
| PCB Board Dimension | 105*20.5mm |
| Weight | Approx. 8g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Brown |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM, 3G/UMTS/PCS, 4G/LTE, LTE-M/LTE-NB, etc. |
High-Gain PCB Cellular Antenna 4G CAT-M LTE-NB Features
