Description
What is a High-Gain Cellular LTE Antenna PCB 4G CAT-M?

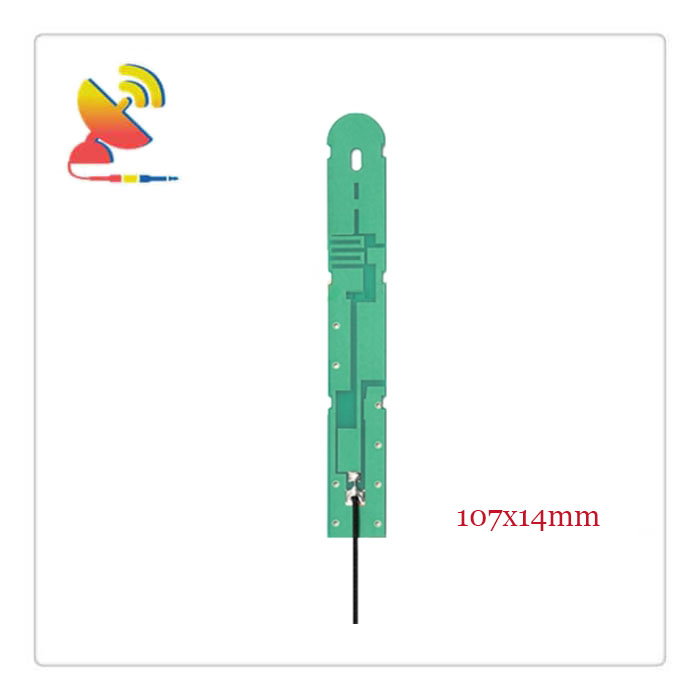

The high-gain cellular LTE antenna PCB 4G CAT-M antenna CTRF-ANTENNA-PCB-7027-10714-IPEX antenna is a 4G LTE CAT-M NB-IoT PCB antenna with an 8/10dBi peak gain and “peel and stick” mounting antenna manufactured by C&T RF Antennas Inc. for internal cellular IoT devices.
Features of The High-Gain Cellular LTE Antenna PCB 4G CAT-M
4G, LTE, CAT-M applications
Operating range 698-960MHz, 1710-2700MHz
8/10dBi high-gain antenna
Printed circuit board(PCB) material
RG 1.13 low-loss antenna cable extension
Adhesive backing sticker
etc.
The high-gain cellular LTE antenna PCB 4G CAT-M antenna is manufactured by C&T RF Antennas Inc., China’s leading Cellular IoT internal antenna & external antenna manufacturer.
A range of Cellular IoT NB-IoT 4G 3G LTE antennas, including Flexible, SMA, whip, helical, stubby, and fiberglass antennas from C&T RF Antennas Inc.
C&T RF Antennas Inc. also provides 4G Antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc.
C&T RF Antennas Inc provides RF wireless antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NFC, VHF&UHF, NB-IoT, ADS-B, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, etc.
The high-gain cellular LTE antenna PCB 4G CAT-M antenna is available at C&T RF Antennas Inc. Contact us for the LTE PCB antenna datasheet, antenna pricing, and 4G CAT-M PCB antenna inventory.
Or the other 4G LTE Cat-M antenna styles.
High-Gain Cellular LTE Antenna PCB 4G CAT-M Specifications
High-Gain Cellular LTE Antenna PCB 4G CAT-M Electrical Specifications |
|
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-10714-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 8/10dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 120mm |
| Lightning Protection | DC-Ground |
High-Gain Cellular LTE Antenna PCB 4G CAT-M Mechanical Specifications |
|
| PCB Board Dimension | 107*14mm |
| Weight | Approx. 8g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM, 3G/UMTS/PCS, 4G/LTE, LTE-M/LTE-NB, etc. |
High-Gain Cellular LTE Antenna PCB 4G CAT-M Features
