High Gain Antenna 4G Flexible Antenna

105x15mm High Gain Antenna 4G Flexible Antenna Design - C&T RF Antennas Inc

High Gain Antenna 4G Manufacturer

C&T RF Antennas Inc is the embedded antenna High Gain Antenna 4G Flexible Antenna Manufacturer in China, we provide the 4G LTE Antenna with internal & external antenna types for your best choice.

Contact the C&T RF team for more High Gain Antenna 4G Flexible Antenna details.

Description

What is a High Gain Antenna 4G Flexible Antenna?

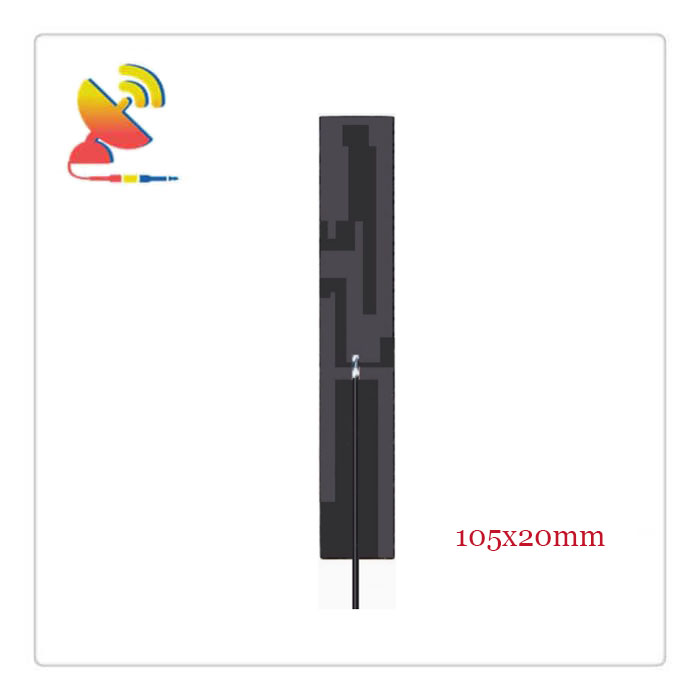

The High Gain Antenna 4G Flexible Antenna CTRF-ANTENNA-FPC-7027-10514-UFL120 is an 8/10dBi high gain LTE antenna 4G indoor antenna manufactured by C&T RF Antennas Inc for 4G LTE wireless network applications.

The High Gain Antenna GSM 4G LTE Antenna is an embedded antenna flexible PCB size 105x15mm, 120mm length RG cable extender, and Ipex/u.FL/MHF connector flexible antenna for 4G LTE applications.

The High Gain Antenna 4G Flexible Antenna is supplied by C&T RF Antennas Inc, the leading indoor-outdoor GSM 3G LTE 4G  antenna manufacturer in China.

We provide Omnidirectional antennas with other radio frequencies such as 169MHz230MHz315MHz433MHz868MHz915MHzLoraNB-IoTGSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTEGPS5G NR, etc.

C&T RF Antennas Inc provides the 4G antenna with many antenna types such as Dipole AntennasWhip AntennasMarine AntennasRouter AntennasMIMO AntennasPCB AntennasFPC AntennasSpring Antennas, etc, for IoT & M2M industries.

The High Gain Antenna 4G Flexible Antenna is available at C&T RF Antennas Inc, Contact us for the High Gain Antenna 4G Flexible Antenna datasheet, High Gain Antenna 4G Flexible Antenna pricing, and High Gain Antenna 4G Flexible Antenna inventory, or other 4G LTE Antenna types.

High Gain Antenna 4G Flexible Antenna Specifications

High Gain Antenna 4G Flexible Antenna Electronical Specifications

RF Antenna Type Flexible PCB/FPC Antenna
Model CTRF-ANTENNA-FPC-7027-10515-UFL120
Frequency 698-960MHz, 1710-2700MHz
Gain 8/10dBi
VSWR ≤2.0
Impedance 50 Ω
Polarization Omnidirectional
Cable RG1.13mm
Cable Length 120mm
Connector U.FL/IPEX/MHF
Lightning Protection DC Ground

High Gain Antenna 4G Flexible Antenna Mechanical Specifications

Dimension 105x15mm
Weight Approx. 10g
Material Flexible PCB/FPC
Operation Temperature -40˚C ~ +85˚C
Storage Temperature -40˚C ~ +80˚C
Color Black
Antenna Form Omni Dipole
Mounting Sticker/Connector
Safety Emission and other RoHS Compliant
Applications Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE

High Gain Antenna 4G Flexible Antenna Features

Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features - C&T RF Antennas Inc Antenna Company
Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features – C&T RF Antennas Inc Antenna Company



Built-in Antenna Flexible Antenna Flex PCB Antenna Features - C&T RF Antennas Inc Antenna Supplier
Built-in Antenna Flexible Antenna Flex PCB Antenna Features – C&T RF Antennas Inc Antenna Supplier



RG cable with low loss antenna extension antenna extender - C&T RF Antennas Inc Antenna Manufacturer
RG cable with low loss antenna extension antenna extender – C&T RF Antennas Inc Antenna Manufacturer



IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder - C&T RF Antennas Inc
IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder – C&T RF Antennas Inc



High Gain Antenna 4G Flexible Antenna Applications

Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc
Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc



What is the 4G IP-based core network?

The core network of the 4G mobile communication system is an all-IP-based network that enables seamless interconnection between different networks.

The core network is independent of specific wireless access schemes and can provide end-to-end IP services compatible with existing core networks and PSTNs.

The core network has an open structure, allowing various air interfaces to access the core

The core network has an open structure, allowing various air interfaces to access the core network; at the same time, the core network can separate the service, control, and transmission.

IP is compatible with a variety of wireless access protocols, so there is a lot of flexibility in designing the core network without considering which method and protocol to use for wireless access.

In the 4G communication system, the IPv4 protocol will be replaced by IPv6 technology, which is mainly used in full packet mode:

It has a large address space;

Supports both stateless and stateful address auto-configuration;

The ability to provide different levels of quality of service;

More mobility.
