What is a High-Gain 4G LTE 5G NR PCB Antenna?
The high-gain 4G LTE 5G NR PCB antenna item CTRF-ANTENNA-PCB-60600-18022-IPEX is a 2G 3G 4G 5G antenna, 15/18dBi high-gain antenna, an internal PCB antenna provided by C&T RF Antennas Inc., an indoor-outdoor cellular 4G LTE 5G NR antenna, ultra-wideband antenna manufacturer in China.

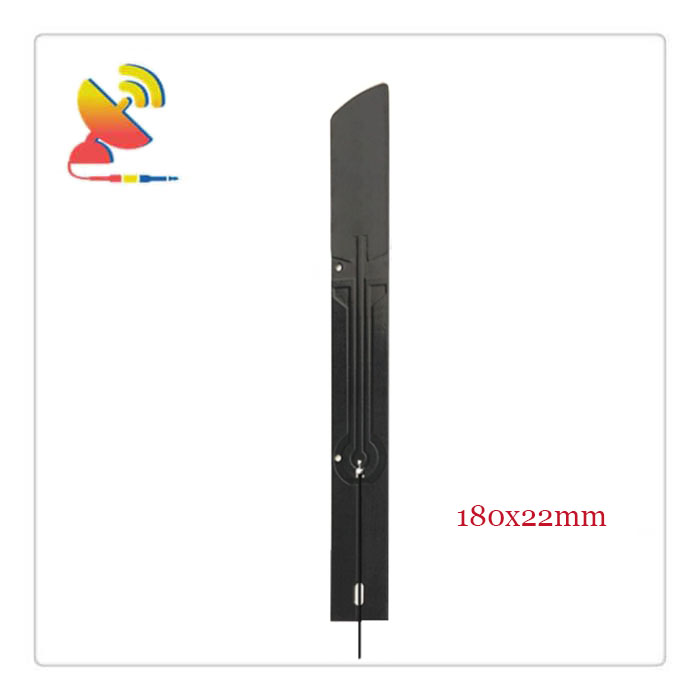

The high-gain 4G LTE 5G NR PCB antenna comes with a 600- 6000MHz wideband spectrum, a 15/18dBi high-gain, a 180x22mm rigid printed circuit board antenna size, and an IPEX antenna suitable for 5G communication modules, routers, devices, etc.
Features of High-Gain 4G LTE 5G NR PCB Antenna
LTE 5G NR antenna
15/18dBi gain
Vertical polarization
Omni radiation pattern
Peel-and-stick easy installation
etc.
The high-gain 4G LTE 5G NR PCB antenna is supplied by C&T RF Antennas Inc., the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, Cellular 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, NFC, ADS-B, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc. for IoT & M2M industries.
The high-gain 4G LTE 5G NR PCB antenna is available at C&T RF Antennas Inc. Contact us for the 4G 5G PCB antenna datasheet, LTE 5G 4G antenna pricing, and inventory on the 4G LTE 5G NR PCB Antenna.
Or other indoor-outdoor 5G NR antenna styles.
High-Gain 4G LTE 5G NR PCB Antenna Specifications
High-Gain 4G LTE 5G NR PCB Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-18022-IPEX |
| Frequency | 600-6000MHz |
| Gain | 15/18dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-Gain 4G LTE 5G NR PCB Antenna Mechanical Specifications |
|
| Dimension | 180x22mm |
| Weight | Approx. 20g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc. |
Built-in PCB Antenna Features
