What is a High-Gain 4G GSM PCB Flat Antenna?

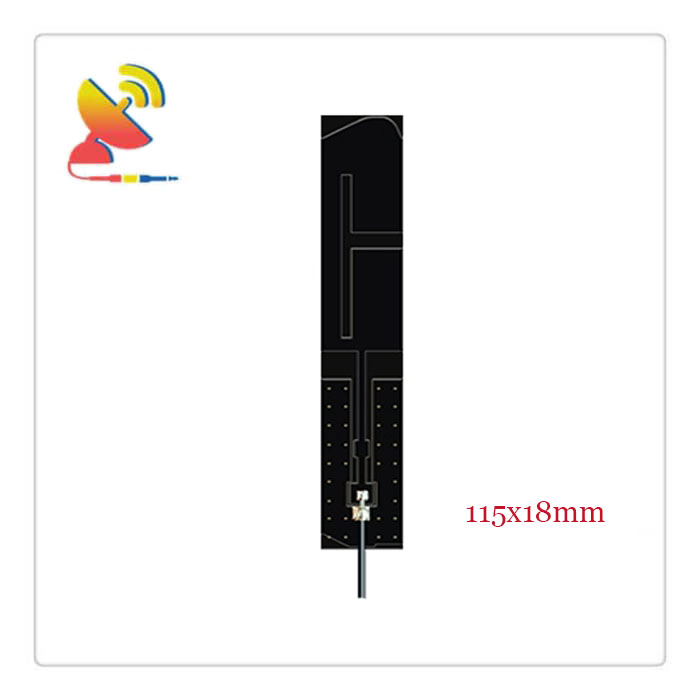

The high-gain 4G GSM PCB flat antenna item CTRF-ANTENNA-PCB-7027-11518-IPEX antenna is an 8/10dBi high-gain 4G LTE antenna, a black color PCB antenna, a full-band 700-960MHz, 1710-2700MHz internal antenna manufactured by C&T RF Antennas Inc. for internal GSM / cellular IoT devices.
Features of The High-Gain 4G GSM PCB Flat Antenna
Built-in PCB GSM antenna
4G LTE Full-band
700 – 2700MHz radio frequency wideband range
8/10dBi high-gain antenna
Rigid PCB material
RG 1.13 low-loss cable extender
Self-adhesive sticker
etc.
The high-gain 4G GSM PCB flat antenna is manufactured by C&T RF Antennas Inc., China’s leading Cellular IoT internal antenna & external antenna manufacturer.
A range of Cellular IoT NB-IoT 4G 3G LTE antennas, including Flexible, SMA, whip, helical, stubby, and fiberglass antennas from C&T RF Antennas Inc.
C&T RF Antennas Inc. also provides 4G Antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc.
C&T RF Antennas Inc provides RF wireless antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NFC, VHF&UHF, NB-IoT, ADS-B, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, etc.
The high-gain 4G GSM PCB flat antenna is available at C&T RF Antennas Inc. Contact us for the 4G PCB antenna datasheet, GSM PCB antenna pricing, and antenna inventory.
Or the other 4G GSM antenna styles.
High-Gain 4G GSM PCB Flat Antenna Specifications
High-Gain 4G GSM PCB Flat Antenna Electrical Specifications |
|
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-11518-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 8/10dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 120mm |
| Lightning Protection | DC-Ground |
High-Gain 4G GSM PCB Flat Antenna Mechanical Specifications |
|
| PCB Board Dimension | 105*20.5mm |
| Weight | Approx. 8g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM, 3G/UMTS/PCS, 4G/LTE, LTE-M/LTE-NB, etc. |
High-Gain 4G GSM PCB Flat Antenna Features
