Description
What is a High-Gain 4G 5G LTE Internal PCB Antenna?
The high-gain 4G 5G internal PCB antenna item CTRF-ANTENNA-PCB-60600-13120-IPEX is a high-gain 12/15dBi LTE-M (Cat-M1), NB-IoT, GSM, 2G/3G/4G/5G cellular IoT internal PCB antenna provided by C&T RF Antennas Inc., an indoor-outdoor cellular 4G LTE 5G NR antenna, ultra-wideband antenna manufacturer in China.
The high-gain 4G 5G internal PCB antennas are internal cellular PCB antennas that perform great for LTE-M and 5G applications.
Features of High-Gain 4G 5G LTE Internal PCB Antenna
High-performance LTE 5G antenna
High-gain 12/15dBi antenna
Cellular IoT antenna for LTE-M (Cat-M1) and NB-IoT wireless networks
PCB antenna for 5G/4G/3G/2G applications
etc.
The high-gain 4G 5G internal PCB antenna is supplied by C&T RF Antennas Inc., the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, Cellular 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, NFC, ADS-B, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc. for IoT & M2M industries.
The high-gain 4G 5G internal PCB antenna is available at C&T RF Antennas Inc. Contact us for the 4G 5G internal PCB antenna datasheet, 4G 5G LTE antenna pricing, and inventory on the 4G LTE 5G NR PCB Antenna.
Or other indoor-outdoor 5G NR antenna styles.
High-Gain 4G 5G LTE Internal PCB Antenna Specifications
High-Gain 4G 5G LTE Internal PCB Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-13120-IPEX |
| Frequency | 600-6000MHz |
| Gain | 12/15dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-Gain 4G 5G LTE Internal PCB Antenna Mechanical Specifications |
|

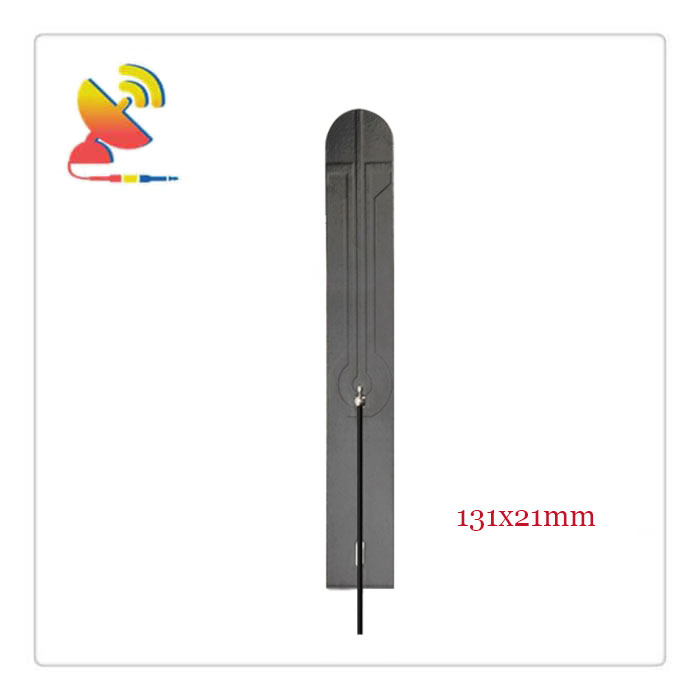

| Dimension | 131x20mm |
| Weight | Approx. 15g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc. |
Built-in PCB Antenna Features
