What is a 4G 5G LTE GSM Cellular PCB Antenna?
The high-gain 4G 5G LTE GSM Cellular PCB antenna item CTRF-ANTENNA-PCB-60600-10620-IPEX is an indoor PCB antenna with 5G new radio covering 4G/3G/2G GSM bands cellular antenna provided by C&T RF Antennas Inc., an indoor-outdoor cellular 4G LTE 5G NR antenna, ultra-wideband antenna manufacturer in China.
The high-gain 4G 5G LTE GSM Cellular PCB antennas are designed for compact systems with efficient signal reception. Ideal for wireless systems requiring high performance in small designs.
Features of High-performance 4G 5G LTE GSM Cellular PCB Antenna
High-performance
High-gain
Low profile
Wideband
Rigid PCB style
Adhesive backing
etc.
The high-gain 4G 5G LTE GSM Cellular PCB antenna is supplied by C&T RF Antennas Inc., the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, Cellular 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, NFC, ADS-B, etc.
C&T RF Antennas Inc. provides the 4G LTE 5G NR antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc. for IoT & M2M industries.
The high-gain 4G 5G LTE GSM Cellular PCB antenna is available at C&T RF Antennas Inc. Contact us for the 4G 5G LTE GSM Cellular PCB antenna datasheet, 4G 5G PCB antenna pricing, and inventory on the 4G LTE 5G NR PCB Antenna.
Or other indoor-outdoor 5G NR antenna styles.
High-Gain 4G 5G LTE GSM Cellular PCB Antenna Specifications
High-Gain 4G 5G LTE GSM Cellular PCB Antenna Electrical Specifications |
|
| RF Antenna Type | PCB Antenna |
| Model | CTRF-ANTENNA-PCB-60600-10620-IPEX |
| Frequency | 600-6000MHz |
| Gain | 10/12dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
High-Gain 4G 5G LTE GSM Cellular PCB Antenna Mechanical Specifications |
|

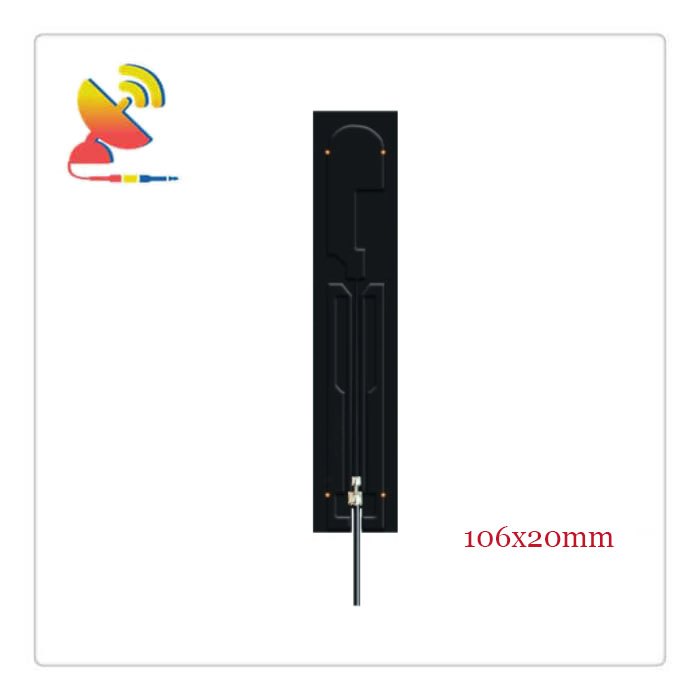

| Dimension | 106x20mm |
| Weight | Approx. 12g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G, etc. |
Built-in PCB Antenna Features
