What is a High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna?
The high-performance GSM NB-IoT 2G 3G 4G LTE PCB antenna CTRF-ANTENNA-PCB-7027-7431-IPEX antenna is a 700- 2700MHz built-in antenna NB-IoT LTE 4G, 3G, 2G, GSM, GPRS, UMTS PCB antennas manufactured by C&T RF Antennas Inc. for internal cellular IoT applications.
Features of The High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna
3G, 4G, Cellular GSM/2G, NB-IoT applications
Operating range 700 – 2700MHz
5/7dBi high-gain antenna
Rigid printed circuit board material
RG 1.13 low-loss antenna cable extension
Adhesive backing sticker
etc.
The high-performance GSM NB-IoT 2G 3G 4G LTE PCB antenna is manufactured by C&T RF Antennas Inc., the leading Cellular IoT internal antenna & external antenna manufacturer in China.
A range of Cellular IoT NB-IoT 4G 3G LTE antennas, including Flexible, SMA, whip, helical, stubby, and fiberglass antennas from C&T RF Antennas Inc.
C&T RF Antennas Inc. also provides 4G Antennas with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, Combo Antennas, PCB Antennas, FPC Antennas, Spring Antennas, Sector Antennas, Yagi Antennas, etc.
C&T RF Antennas Inc provides RF wireless antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NFC, VHF&UHF, NB-IoT, ADS-B, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, GNSS, 5G NR, UWB, etc.
High-performance GSM NB-IoT 2G 3G 4G LTE PCB antenna is available at C&T RF Antennas Inc. Contact us for the GSM NB-IoT 2G 3G 4G LTE PCB antenna datasheet, antenna pricing, and antenna inventory.
Or other 4G LTE Antenna styles.
High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna Specifications
High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna Electrical Specifications |
|
| RF Antenna Type | Embedded PCB Antenna |
| Model | CTRF-ANTENNA-PCB-7027-7431-IPEX |
| Frequency Center | 698-960MHz, 1710-2700MHz |
| Gain | 5/7dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX |
| Cable Length | 120mm |
| Lightning Protection | DC-Ground |
High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna Mechanical Specifications |
|

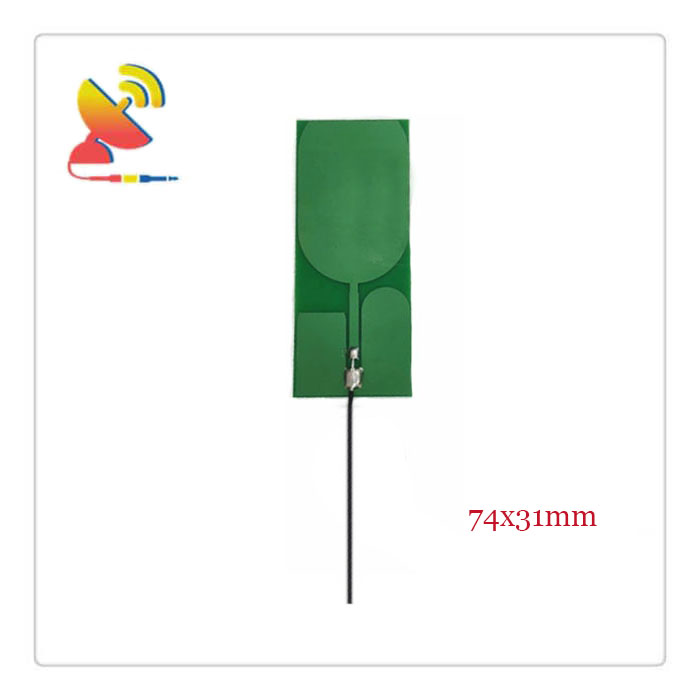

| PCB Board Dimension | 74*31mm |
| Weight | Approx. 8g |
| Material | PCB |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Green |
| Antenna Design | Omni Dipole Array |
| Mounting | Connector/Adhesive Sticker |
| Safety, Emission, and other | RoHS Compliant |
| Applications | ISM/SCADA/Utilities, IoT/NB-IoT/LoRa, 2G/GPRS/GSM, 3G/UMTS/PCS, 4G/LTE, LTE-M/LTE-NB, etc. |
High-performance GSM NB-IoT 2G 3G 4G LTE PCB Antenna Features
