Compact NB-IoT Flexible Antenna

44x10mm Compact NB-IoT Flexible Antenna Narrowband Antenna - C&T RF Antennas Inc

NB-IoT Flexible Antenna Manufacturer

C&T RF Antennas Inc is the built-in antenna NB-IoT Flexible Antenna Narrowband IoT Antenna Manufacturer, we provide NB-IoT Antennas with many antenna types.

Contact the C&T RF sales team for more NB-IoT Flexible Antenna Narrowband IoT Antenna details.

Description

What is a Compact NB-IoT Flexible Antenna?

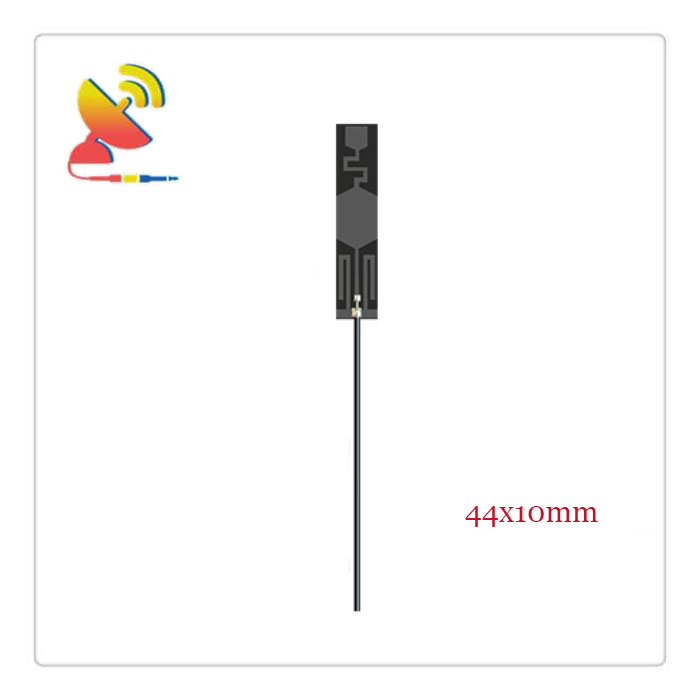

The Compact NB-IoT Flexible Antenna CTRF-ANTENNA-FPC-8221-4410-UFL120 model is a 44x10mm PCB board compact flexible antenna 3dBi embedded antenna Narrowband IoT Antenna manufactured by C&T RF Antennas Inc for IoT & M2M applications.

NB-IoT technology definition

At present, only the FDD LTE system supports NB-IoT technology, the TD-LTE system does not support NB-IoT technology.

NB-IoT is modified on the basis of FDD LTE technology, the physical layer design mostly follows LTE system technology.

Such as SC-FDMA for uplink and OFDM for downlink, and the high-level protocol design follows LTE protocol, with a functional enhancement for a small packet, low power consumption, and large connection characteristics in the period.

The core network is partially connected based on the S1 interface and supports both standalone and upgrade deployment.

Conclusion: NB-IoT can be understood as a simplified version of FDD-LTE technology;

Advantages: NB-IoT has the best performance in terms of coverage, power consumption, cost, and number of connections, and best meets the demand for LPWA-type services;

Disadvantages: NB-IoT cannot meet the requirements of high mobility and speed, high data volume, and the need for voice. NB-IoT cannot meet the demand for high mobility and rate, high data volume, and voice service. Consider candidate technologies such as eMTC and Cat1;

The Compact NB-IoT Flexible Antenna is manufactured by C&T RF Antennas Inc, the NB-IoT antenna supplier in China, we provide the Lora antenna with internal and external antenna types.

We provide the RF wireless antennas with other radio frequencies such as 169MHz230MHz315MHz433MHz868MHz915MHzLoraNB-IoTGSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTEGPS5G NR, etc.

C&T RF Antennas Inc provides the NB-IoT antenna with many antenna types such as Dipole AntennasWhip AntennasMarine AntennasRouter AntennasMIMO AntennasPCB AntennasFPC AntennasSpring Antennas, etc.

Contact us for the Compact NB-IoT Flexible Antenna datasheet, Compact NB-IoT Flexible Antenna pricing, and inventory on the Compact NB-IoT Flexible Antenna. Or other Narrowband IoT antenna styles.

Compact NB-IoT Flexible Antenna Specifications

Compact NB-IoT Flexible Antenna Electrical Specifications

RF Antenna Type Flex PCB Antenna
Model CTRF-ANTENNA-FPC-8221-4410-UFL120
Frequency 824-960MHz, 1710-2170MHz
Gain 3dBi
VSWR ≤2.0
Impedance 50 Ω
Polarization Vertical
Connector UFL/Ipex
Lightning Protection DC-Ground

Compact NB-IoT Flexible Antenna Mechanical Specifications

FPCB Board Dimension 44x10mm
Weight Approx. 5g
Material Flexible PCB Board
Operation Temperature -40˚C ~ +85˚C
Storage Temperature -40˚C ~ +80˚C
Color Black
Antenna Design Dipole Antenna
Mounting Screw/Sticker
Safety Emission and other RoHS Compliant
Applications ISM/SCADA/Utilities, IoT/NB-IoT/LoRa,

2G/GPRS/GSM/3G/LTE-M/PCS

NB-IoT Flex Antenna Features

Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features - C&T RF Antennas Inc Antenna Company
Built-in Antenna Flexible Antenna Flex PCB Antenna FPC Antenna Features – C&T RF Antennas Inc Antenna Company



Built-in Antenna Flexible Antenna Flex PCB Antenna Features - C&T RF Antennas Inc Antenna Supplier
Built-in Antenna Flexible Antenna Flex PCB Antenna Features – C&T RF Antennas Inc Antenna Supplier



RG cable with low loss antenna extension antenna extender - C&T RF Antennas Inc Antenna Manufacturer
RG cable with low loss antenna extension antenna extender – C&T RF Antennas Inc Antenna Manufacturer



IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder - C&T RF Antennas Inc
IPEX Antenna UFL Antenna MHF Antenna connector or opening end for solder – C&T RF Antennas Inc



NB-IoT Flex Antenna Applications

Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc
Indoor-Outdoor Antenna RF Wireless Antenna Applications C&T RF Antennas Inc
