Description
What is a Built-in Antenna 5G NR LTE Flexible Antenna?

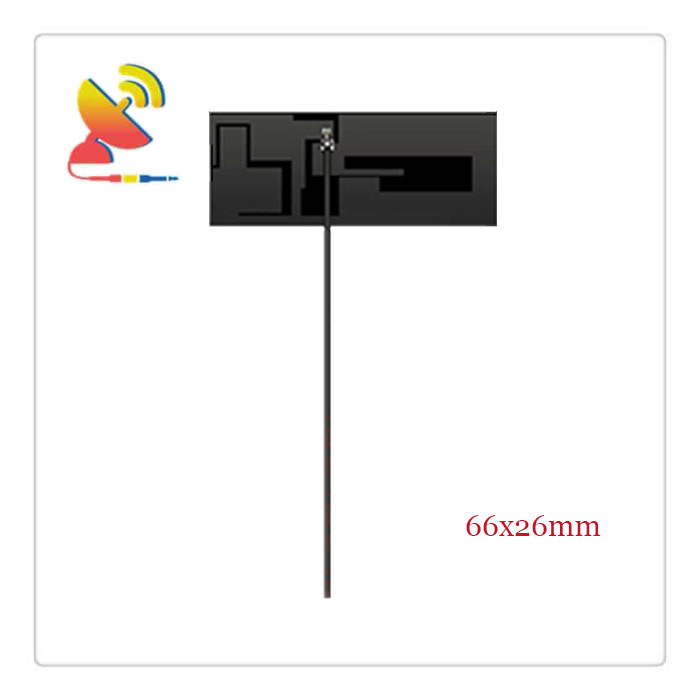

The Built-in Antenna 5G NR LTE Flexible Antenna CTRF-ANTENNA-FPC-60600-6626-UFL120 is a flexible printed circuit board size 66x26mm 5G NR antenna Ipex antenna manufactured by C&T RF Antennas Inc, the internal-external 5G NR antenna manufacturer in China.
What is 5G NR Standalone?
5G NR Standalone means using 5G NR as the control plane anchor point to access 5GC
5G NR Standalone Advantages
No impact on existing 2G/3G/4G networks
No impact to existing 2G/3G/4G users
Rapid deployment. Direct introduction of new 5G network elements, no need to modify the existing network
Introduce 5GC to provide new 5G functions and services
5G NR Standalone Disadvantages
When NR does not achieve continuous coverage, voice continuity depends on cross-system switching
NR and 5GC need to be deployed simultaneously
The Built-in Antenna 5G NR LTE Flexible Antenna is supplied by C&T RF Antennas Inc, the leading indoor-outdoor 5G NR antenna manufacturer in China.
We provide indoor-outdoor antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, etc.
C&T RF Antennas Inc provides the 4G LTE 5G NR Sub-6G antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc, for IoT & M2M industries.
The Built-in Antenna 5G NR LTE Flexible Antenna is available at C&T RF Antennas Inc, Contact us for the 5G NR LTE Flexible Antenna datasheet, 5G NR LTE Flexible Antenna pricing, and 5G NR LTE Flexible Antenna inventory, or other 5GNR Antenna types.
Built-in Antenna 5G NR LTE Flexible Antenna Specifications
Built-in Antenna 5G NR LTE Flexible Antenna Electronical Specifications |
|
| RF Antenna Type | Flexible PCB/FPC Antenna |
| Model | CTRF-ANTENNA-FPC-60600-6626-UFL120 |
| Frequency | 600-6000MHz |
| Gain | 6dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
Built-in Antenna 5G NR LTE Flexible Antenna Mechanical Specifications |
|
| Dimension | 66x26mm |
| Weight | Approx. 10g |
| Material | Flexible PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety Emission and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G |
Built-in Antenna 5G NR LTE Flexible Antenna Features
4G 5G NR Antenna Applications
