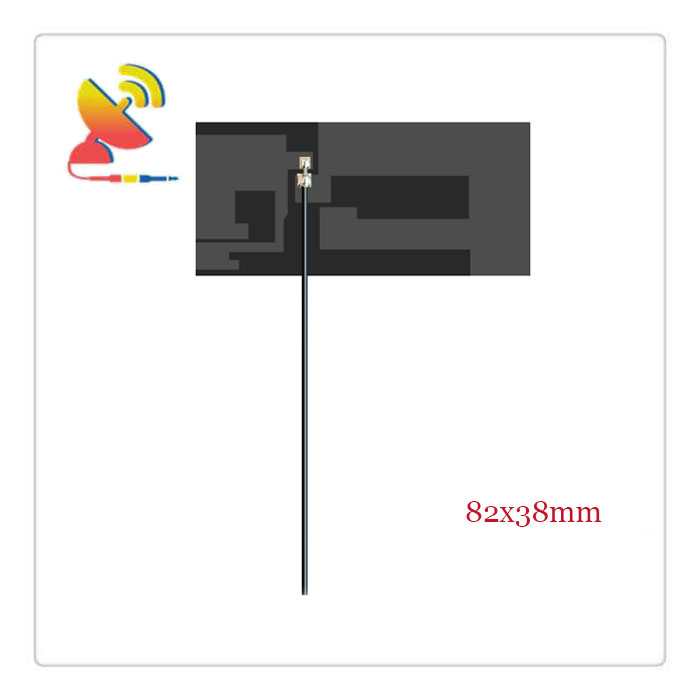

What is a 4G LTE 5G NR Flexible PCB Antenna?
The 4G LTE 5G NR Flexible PCB Antenna CTRF-ANTENNA-FPC-60600-9914-IPEX is a 5G NR antenna for 2G, 3G, and 4G and their respective associated technologies (such as GSM, UMTS, LTE, LTE Advanced Pro, and others) embedded FPC antenna manufactured by C&T RF Antennas Inc, the 4G LTE 5G NR antenna manufacturer in China.
Overview of 5G NR Development
Nowadays, 4G mobile communications have been commercially available on a large scale worldwide. We have already felt the extraordinary experience brought to us by the information age.
New services such as virtual reality and holographic images based on large amounts of information continue to increase the requirements for mobile communications technology.
Some bolder ideas, such as the ultra-intensive Internet of Things and Internet of Vehicles, require more efficient communication technology support, and 5G mobile communication technology is about to emerge.
In view of the fact that 4G LTE technology has become the mainstream technology of mobile communication, the primary development method of the 5G mobile communication system is to build compatible construction on this technology basis.
Compared with 4G LTE, 5G NR will have more significant spectrum utilization, higher transmission rate, higher wireless coverage performance, system security, and user experience.
The key technologies of 5G mobile communication are mainly reflected in two aspects: wireless transmission technology and network technology.
The former mainly includes large-scale antenna arrays, ultra-dense networking, new multiple access, and full-spectrum access technologies, and the latter mainly includes self-organizing networks ( SON), Soft Defined networks (SDN), Network Function Virtualization (VNF), etc.
4G LTE 5G NR Flexible PCB Antenna is supplied by C&T RF Antennas Inc, the leading PCB antenna manufacturer in China.
We provide the RF antennas with other antenna radio frequencies such as 169MHz, 230MHz, 315MHz, 433MHz, 868MHz, 915MHz, Lora, VHF&UHF, NB-IoT, GSM, Wifi 2.4GHz, 5.8GHz, 2G 3G 4G LTE, GPS, 5G NR, UWB, etc.
C&T RF Antennas Inc provides the wireless antenna with many antenna types such as Dipole Antennas, Whip Antennas, Marine Antennas, Router Antennas, MIMO Antennas, PCB Antennas, FPC Antennas, Spring Antennas, etc.
4G LTE 5G NR Flexible PCB Antenna is available at C&T RF Antennas Inc, Contact us for the 5G NR antenna datasheet, 5G NR antenna pricing, and inventory on the 4G LTE 5G NR Flexible PCB Antenna.
4G LTE 5G NR Flexible PCB Antenna Specifications
4G LTE 5G NR Flexible PCB Antenna Electronical Specifications |
|
| RF Antenna Type | Flexible PCB/FPC Antenna |
| Model | CTRF-ANTENNA-FPC-60600-9914-IPEX |
| Frequency | 600-6000MHz |
| Gain | 8±1dBi |
| VSWR | ≤3.0 |
| Impedance | 50 Ω |
| Polarization | Omnidirectional |
| Cable | RG1.13mm |
| Cable Length | 120mm |
| Connector | U.FL/IPEX/MHF |
| Lightning Protection | DC Ground |
4G LTE 5G NR Flexible PCB Antenna Mechanical Specifications |
|
| Dimension | 99x14mm |
| Weight | Approx. 8g |
| Material | Flexible PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Form | Omni Dipole |
| Mounting | Sticker/Connector |
| Safety Emission and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, Wifi, GPS, GNSS, IoT/NB-IoT/LoRa/2G/3G/4G, GSM/GPRS/LTE/5G/6G |
Internal Flexible PCB Antenna Features
